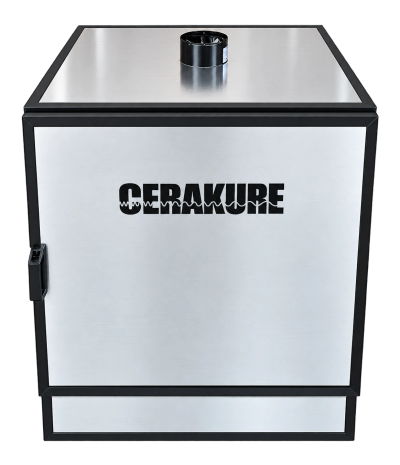

Nano P

---

The Cerakure Nano P is a compact catalytic infrared curing oven designed for Cerakote applicators and powder coating shops. Built on the same platform as the original Nano, it features a larger 12-inch catalytic element that provides the additional infrared output needed for powder coating applications.

Two coating technologies. One compact oven.

Traditional convection ovens heat the air, then heat the part, and eventually cure the coating.

The Nano P takes a different approach.

Using catalytic infrared energy, the Nano P delivers energy directly to the coating, accelerating the curing process without relying on heating an entire oven full of air.

For Cerakote applications, this means significantly reduced curing times. For powder coating, the increased infrared output provides the energy needed to reach curing temperatures.

Typical Cerakote comparison:

• Convection oven: ~2 hours @ 250°F
• Cerakure Nano P: ~20 minutes

Powder coating cure times depend on the coating formulation, part geometry and required cure schedule.

More infrared output. Same compact platform.

The Nano P features:

• 120V operation
• 12-inch catalytic infrared element
• Standard electrical outlet
• Standard gas bottle
• Increased infrared output for powder coating applications

By delivering energy directly to the coating and substrate rather than relying exclusively on heated air, the Nano P reduces unnecessary energy consumption and shortens curing cycles.

The Nano P features the same wireless control system as the original Nano, making it simple to operate regardless of your experience level.

Built-in features include:

• Pre-loaded Cerakote recipes
• Pre-loaded cure times
• Automatic start sequences
• Automatic hold functions
• Wireless operation

Select your recipe, press Start, and let the oven handle the curing sequence.

For powder coating applications, curing parameters can be adjusted to accommodate different coating formulations.

The Nano P operates on a local wireless system, allowing you to control and monitor the oven without standing directly in front of it.

• Monitor and control from anywhere in the shop
• No cables
• No network configuration
• No subscriptions

The same straightforward control system, now with expanded curing capabilities.

The Nano P is designed for:

• Cerakote applicators
• Powder coating shops
• Firearms and small-parts manufacturers
• High-mix, small-batch workflows
• Shops that need both Cerakote and powder coating capabilities

Whether you're curing Cerakote today or powder coating tomorrow, the Nano P gives you the flexibility to handle both without investing in separate ovens.

For larger production requirements, Cerakure offers additional curing systems through authorized distributors.

• Exterior dimensions: 24” W × 22” D × 32” T
• Usable interior space: 22” W × 20” D × 22” T
• Catalytic element: 12”
• Electrical supply: 120V
• Exhaust: 4”

The same compact footprint as the original Nano, with increased infrared output.

• Cerakure Nano P catalytic IR oven
• Wireless control tablet
• Gas hose with regulator and bottle connector
• Pre-configured and ready to run

No assembly. No sourcing parts. No complicated setup.

• Cure both Cerakote and powder coatings
• Faster turnaround
• Increased infrared output
• Less energy consumption
• No lengthy bake queues
• More predictable production scheduling
• Two coating processes in one compact system

The Nano P takes everything that makes the original Nano effective and expands its capabilities to powder coating.

One oven. Two coating technologies. Less waiting.
